TUV CERTIFIED VK135 VK136 LEPRECHAUN ENGINE COMPATIBLE

VK135 VK136 LEVEL ENGINE TUV.  CERTIFICATE

;VK135 VK136 leprechaun engine compatible

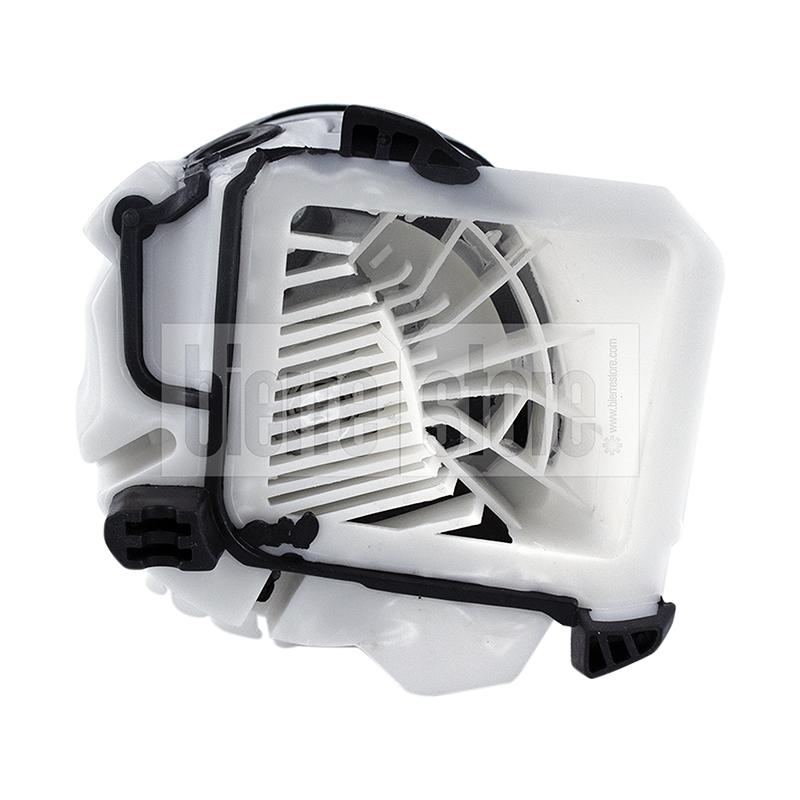

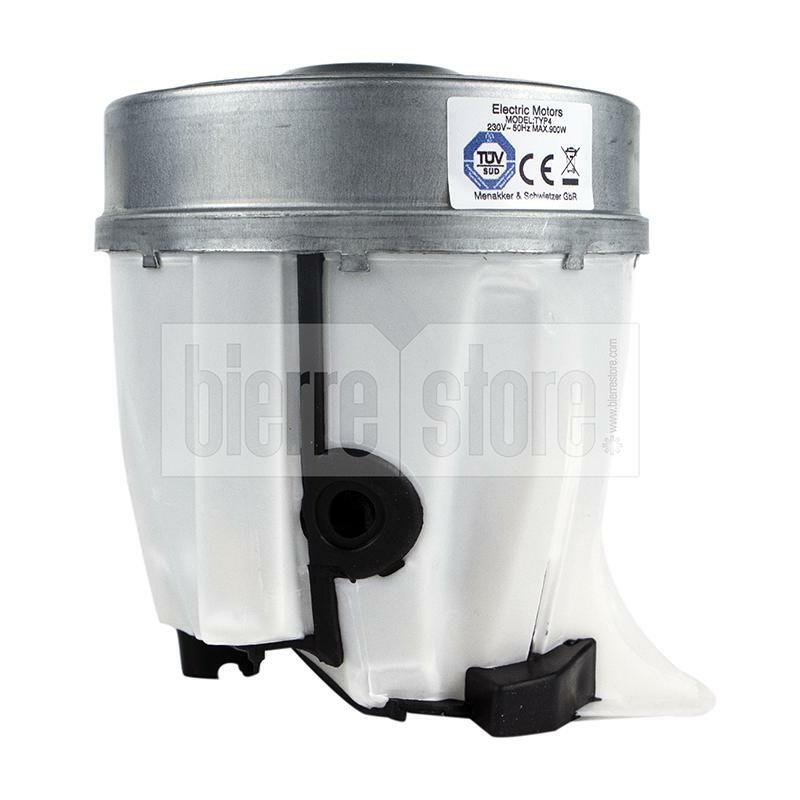

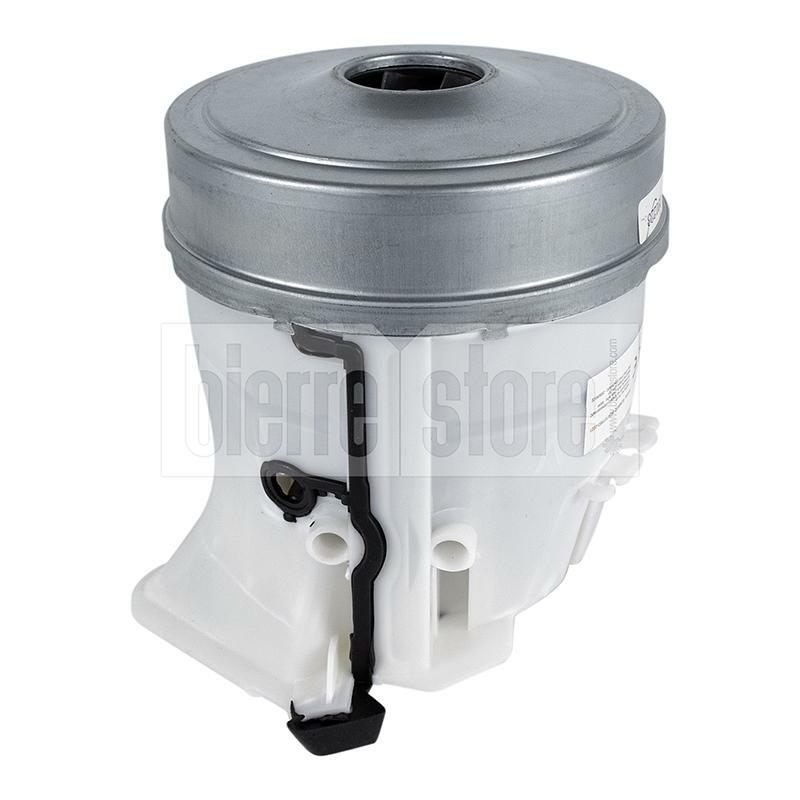

.VK135 VK136 leprechaun engine for Vorwerk leprechaun models 135 and 136, quality controlled and guaranteed replacement. Power 900W. TUV SOUTH certified. The perfect spare part to regenerate your leprechaun in order to revive and still use the unit without having to resort to expensive costs or dedicated assistance.

Replacement leprechaun motor vk 135 vk 136, we explain

1. how:Remove the filter unit, unhook the handle, remove the power cord and finally the brush
2. .unscrew the 6 screws from the rear skeleton, get a TX10 torx key to unscrew them.

3. Unhook the front cover by levering from the bottom.

4. Remove the two power cables from the motor by first removing the protective grommets and then levering with a small slotted screwdriver to facilitate the release of the cable couplings.

5. Remove the thermo-fuse by simply pulling it.

6. Housing the new vk135 vk136 leprechaun engine, paying attention to the suspension grommets, insert the power cables and the thermo-fuse in the appropriate housings.

7. Re-attach the front cover and tighten the screws.

8. Refit everything and replace both filters, the HEPA filter and the protective cloth filter (not included).


6 months. And how much would be the cost of replacing the leprechaun engine

vk 135 vk 136? Normally the cost of replacing the leprechaun engine vk 135 and vk 136 in a service center is about €115 to €150.
With the compatible spare part the cost is significantly reduced.

What's included in the package

• ? 1 VK135 VK136 engine for Vorwerk leprechaun
