VK135 VK136 LEPRECHAUN WIRING COMPATIBLE

VK 135 VK 136.Complete electrical

wiring compatible for Kobold 135 and Kobold 136.VK 135 VK 136

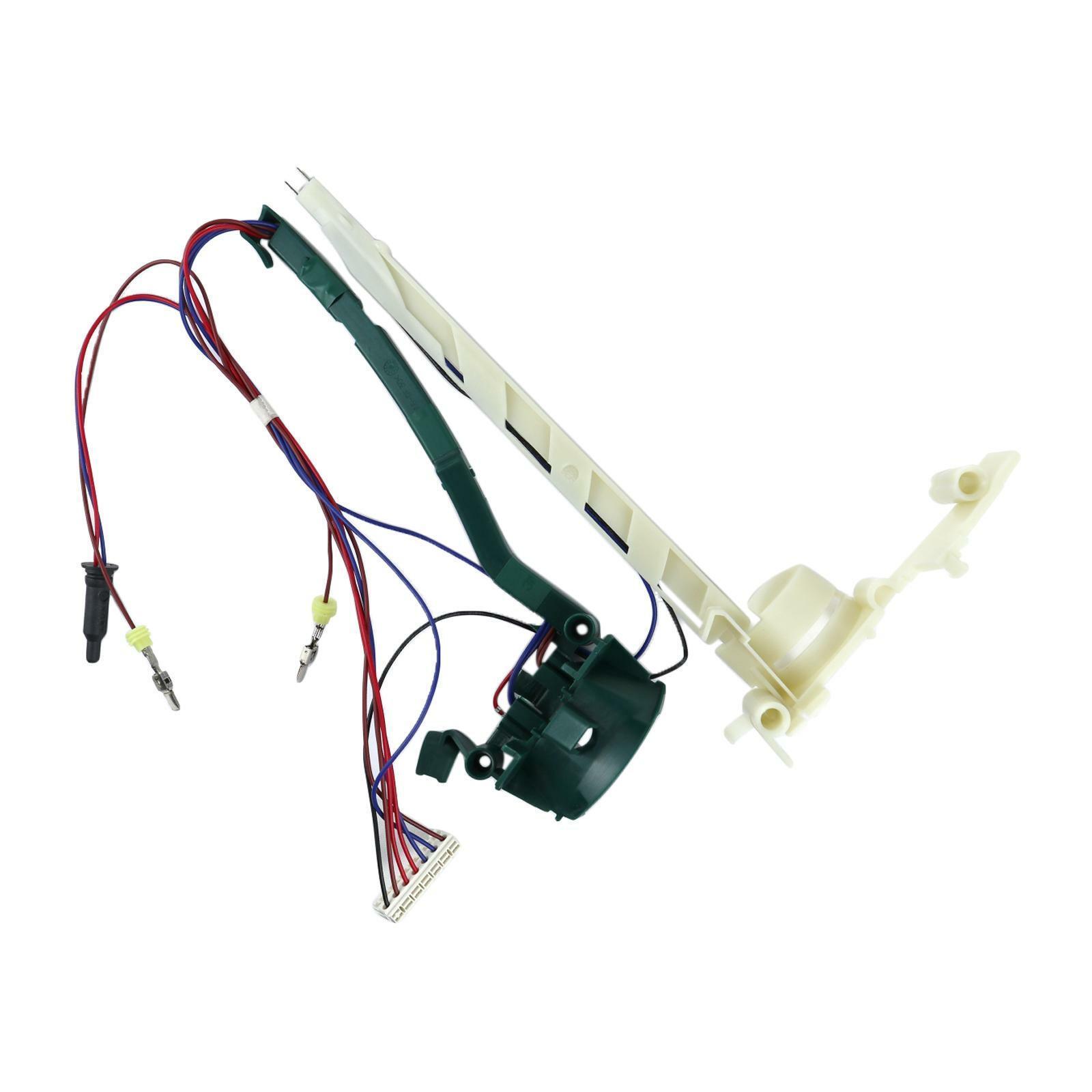

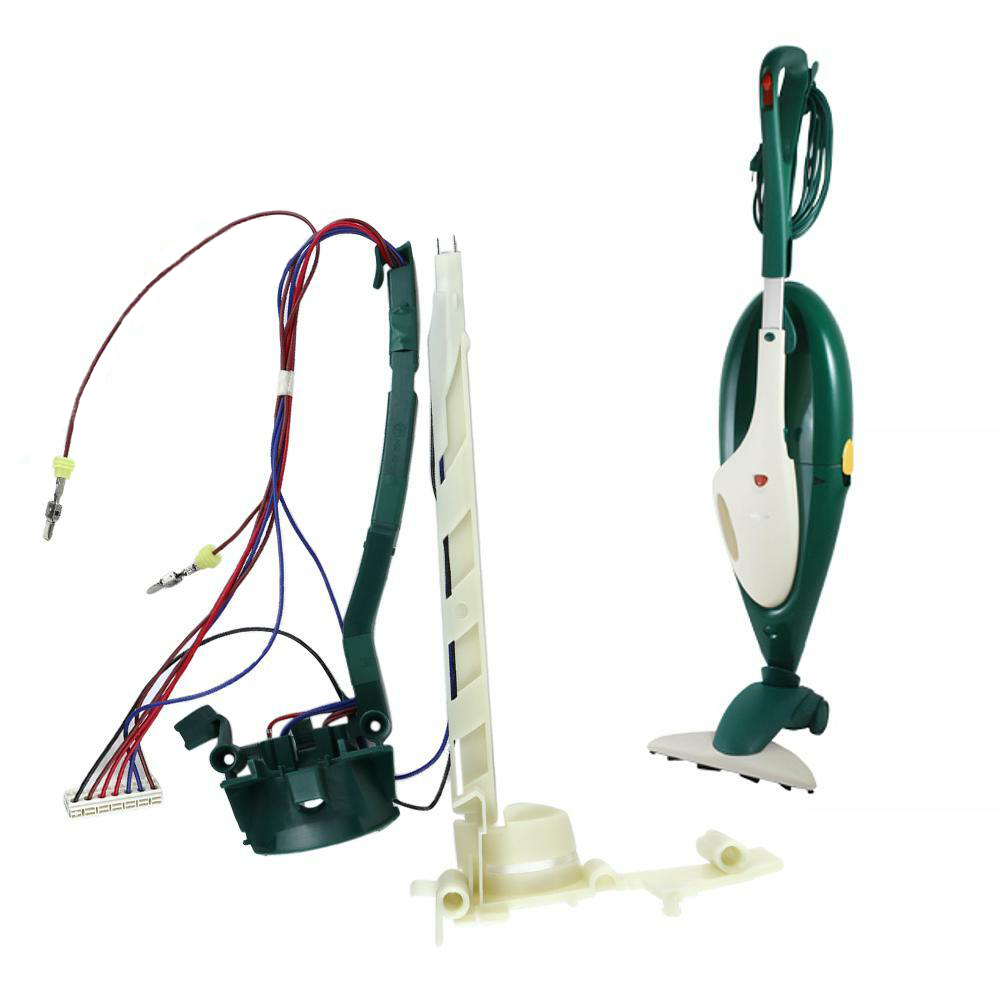

.VK 135 VK 136. Complete electrical wiring for Vorwerk Kobold VK 135 VK 136. The wiring harness is the internal electrical part of the imp that powers the engine, the board and any accessories.

The VK 135 VK 136 imp wiring includes:The

• power supply plugs for the engineThe sensor
• thermo sensor for
• the engine Terminal block
• for the boardPower cable

connectionPower cable connectionAccessory power supply

1. plugsHow to replace the VK 135 VK 136 electrical wiring?Make sure
2. the unit is not connected to the electrical power Unscrew the
3. screws on the back side of the VK135 or VK136 Idler shellPressing the lower button remove the VK 135 or VK 136 Idler shell paying
4. attention to the hooks on the top of the skeletonRemove the
5. power supply  terminal block;on the electronic boardRemove the
6. electronic board by levering on the transmission leverDetach the accessory
7. power supply plate on the lower partRemove the lower green inlet duct and the side white
8. inlet ductRemove
9. the motorPull the wiring harness from the upper part of
10. the camera bodyInsert the new wiring Idler VK
11. 135 VK 136  Proceed by reinstalling it following the steps

in reverseThis is an original or compatible

spare part?The VK 135 VK 136 is a quality controlled COMPATIBLE replacement part
