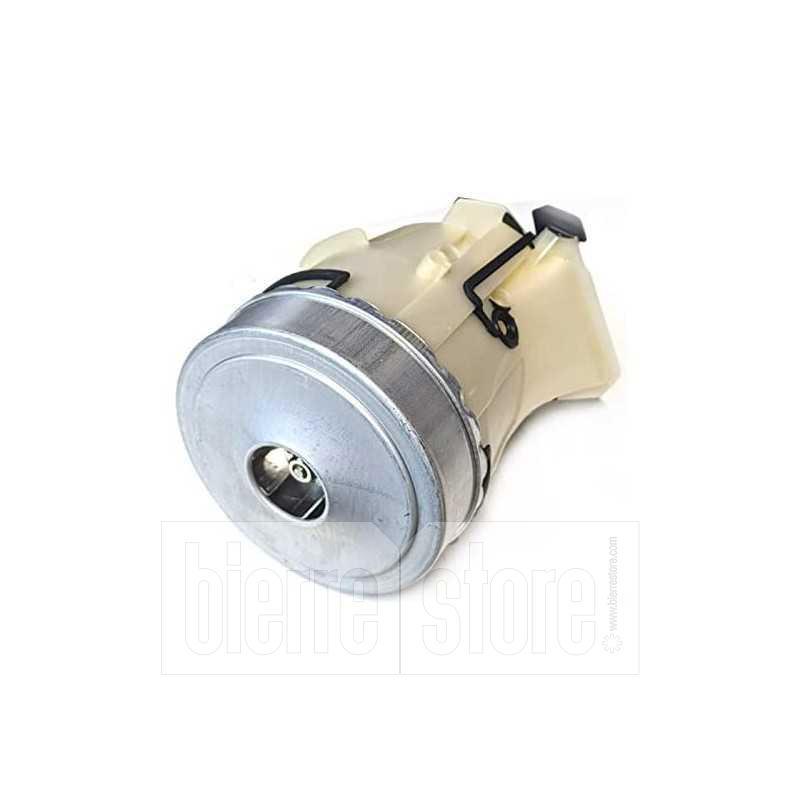

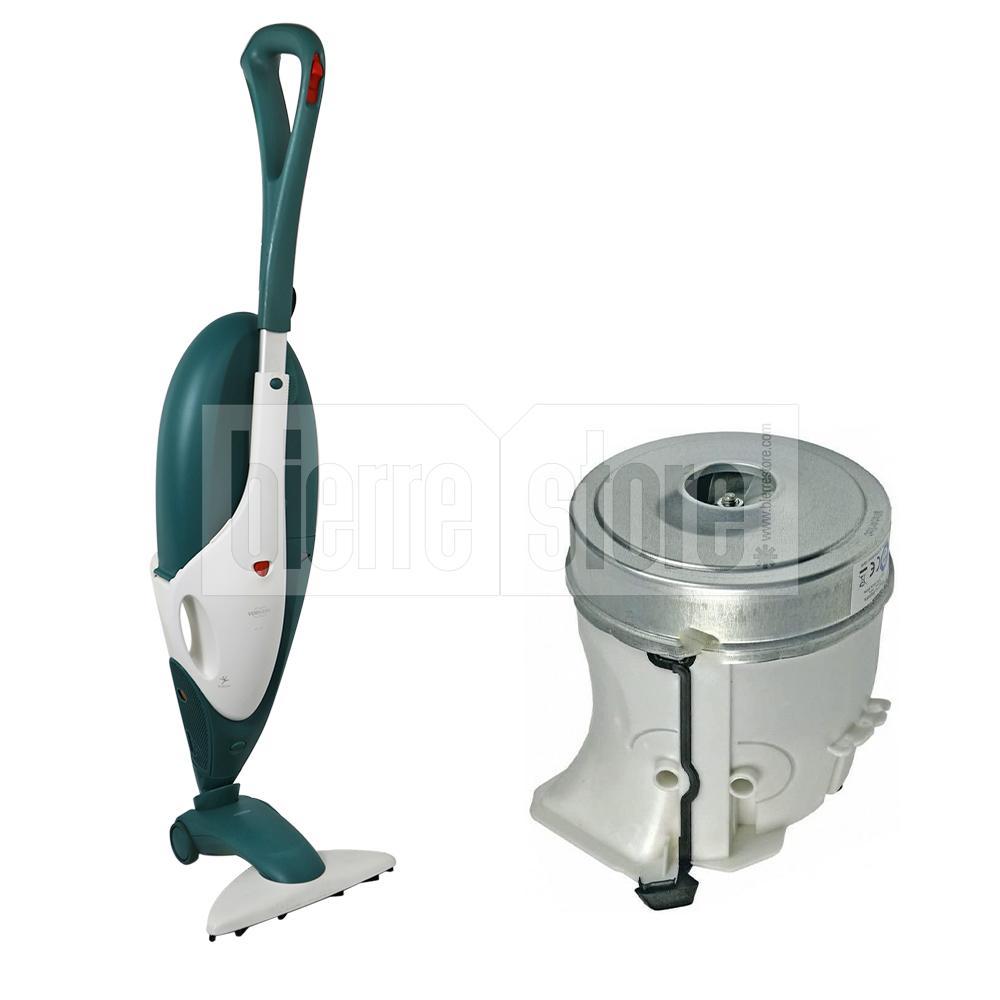

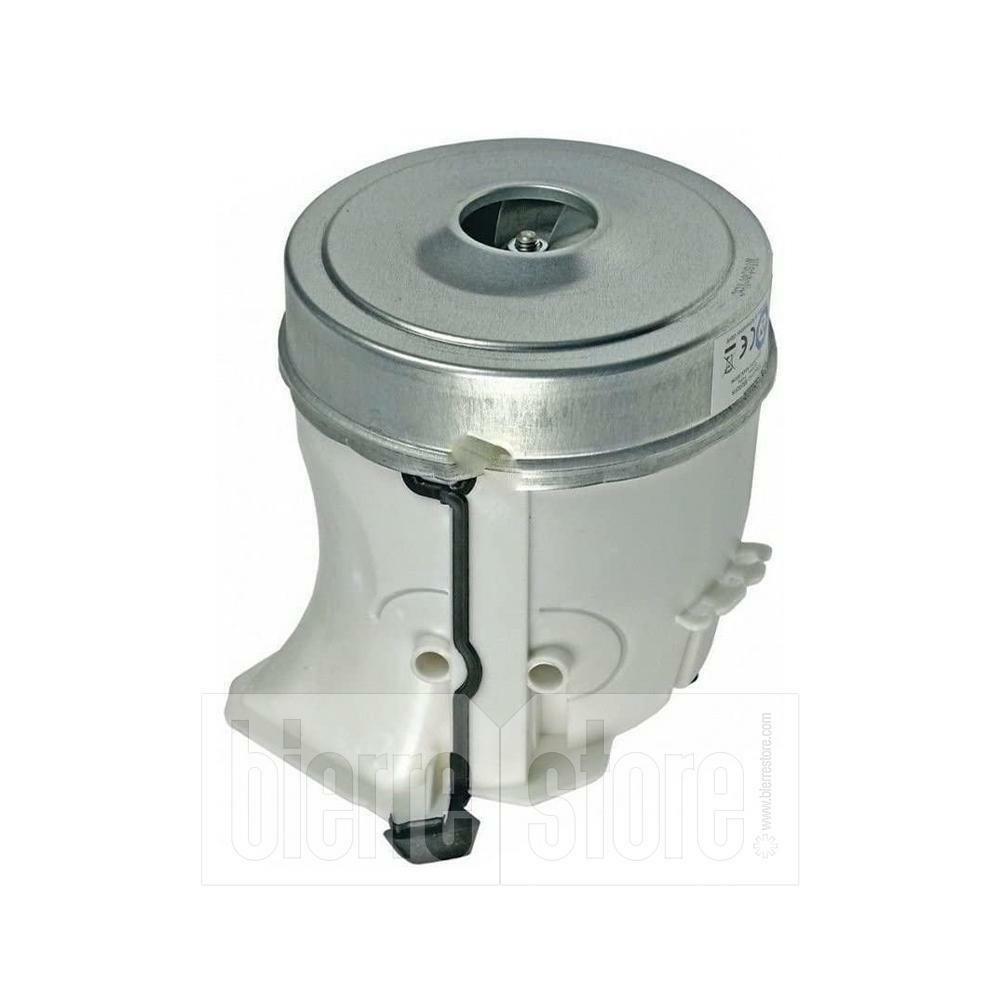

ORIGINAL FOLLETTO MOTOR VK 135 VK 136

FOLLETTO MOTOR VK 135 VK 136 ORIGINAL VORWERK FOLLETTO

MOTOR VK 135 VK 136 ORIGINAL VORWERK.FOLLETTO MOTOR VK

135 VK 136 for Vorwerk Folletto models 135 and 136, ORIGINAL spare part quality controlled and guaranteed
Power 900W.Certified TUV SUD. Replacing motor folletto vk 135 vk 136, we explain how: Remove the filter unit, unhook the handle, remove the power cord and finally the brush.Unscrew the 6 screws from the rear skeleton, equip yourself with a TX10 torx wrench to unscrew them.

• Unhook

the front

1. cover levering it
2. from the lower part.

3. Extract the two power supply cables from the motor by first removing the protective rubbers and then levering with a small slotted screwdriver to facilitate the release of the cable couplings.

4. Remove the thermal fuse by simply pulling it.

5. Place the folletto motor vk 135 vk 136 new paying attention to the rubber suspension, insert the power supply cables and the thermal fuse in the appropriate slots.

6. Re-attach the front cover and tighten the screws.

7. Reassemble all the parts and replace both filters: the HEPA filter and the cloth filter (not included).following these steps, the folletto is ready to make the difference again in household cleaning.

8. We also recommend periodic replacement of the suction filters in order to keep the level of suction and the quality of the air expelled from the appliance high. The replacement of the hepa filter is recommended once every 6 months in

.What does the package include

• ?1 Engine VK 135 VK 136 ORIGINAL Vorwerk ..
